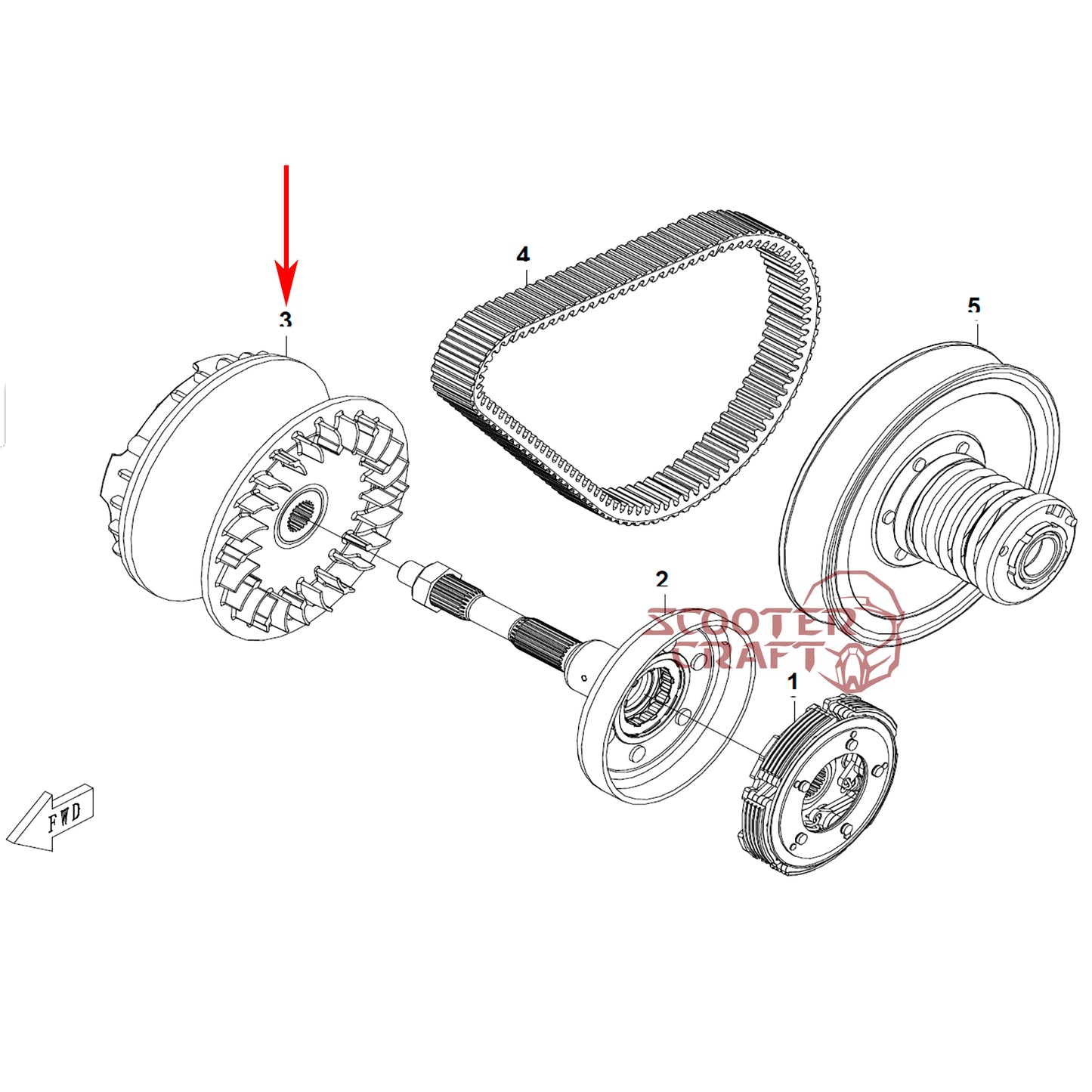

Variator kit, Shaft HL, CF Moto CF500, CF600-3, CF625-C, CF800, CF188, X5, X6, Z6, X8, Z8

Variator kit for ATV & UTV CF Moto
Shaft HL
Drive face outer diameter
Drive face inner diameter
Drive face number of teeth

Movable drive face outer diameter
Movable drive face inner diameter
Movable drive face number of teeth

Variator drive boss outer diameter
Variator drive boss inner diameter

ATV CF500
ATV CF500-A
ATV CF500-2
ATV CF500-2A
SSV CF600-3
UTV CF600-5
ATV CF625-C
SSV CF625-3
SSV CF625-6
ATV CF800-2
ATV CF800AU-2B
ATV CF800ATR
ATV CF800ATR-2
SSV CF800UTR
SSV CF800
UTV CF800-3
CF188
ATV CFMoto X5
ATV CFMoto X6
UTV CFMoto Z6
ATV CFMoto X8
UTV CFMoto Z8

Part number CF Moto
0180-051000-0003

Other spare parts are available under the order. Please send a request.

The principle of operation of the variator.

A variator is a key part of a Continuously Variable Transmission (CVT) and is used in most scooters, ATVs and some modern cars. The variator allows the engine to operate at optimal power and efficiency under various conditions, smoothly and continuously changing the gear ratio depending on the vehicle’s speed and engine RPM.

In the variator, rollers move along (rolling) to open or close the variator and transmit the engine’s power to the drive system. The rollers move along ramps located inside the variator. Depending on the angle of inclination or slope of the ramps, the characteristics and result on our vehicle will be different.

When the rollers in the variator are thrown to the ends of the variator basket, and the belt is forced to rise along the face of the variator, more of the belt is pulled towards the front of the system. For this to happen, the torque driver is forced to gather through the torque spring. This spring keeps the belt under constant tension against the surfaces of the torque driver.
